Vent Bracket Camera Mount
Vent Bracket Camera Mount design listed for 1997–2006 Jeep Wrangler. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Jeep
- Model
- Wrangler
- Year range
- 1997–2006
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description

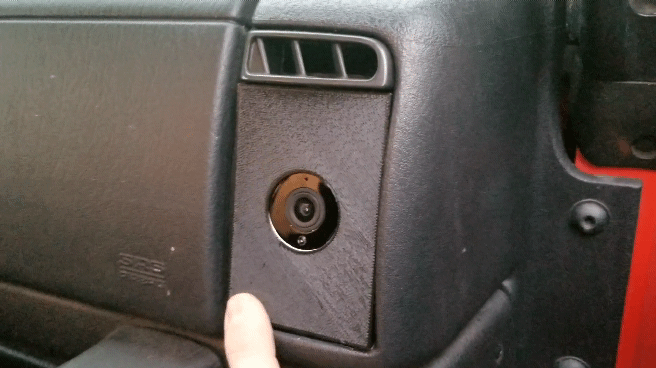

With that said, I've found that retailers sell these Wyze cams very cheap (I bought mine for $15 at Microcenter). They come with free cloud storage and run on very low power (5v USB). I wanted to install one in my Jeep so that if someone enters it, it would immediately alert me. I took some measurements and created this model with Sketchup.
It fits snug, flush, and is hard to remove (which is good). To install you have to push hard until it clicks. There is a small opening where the vent meets the vent-shaft, this is an easy way to push through the USB cable. I was able to find a really cheap USB charger and wired it into my fusebox with a fuse splice and a switch so the camera is always on. You can add a switch if you feel like it might kill your battery. I've been testing and It has been running for 3 days so far and has not killed my battery. I would say if you drive every day or every other day you should be fine.
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
