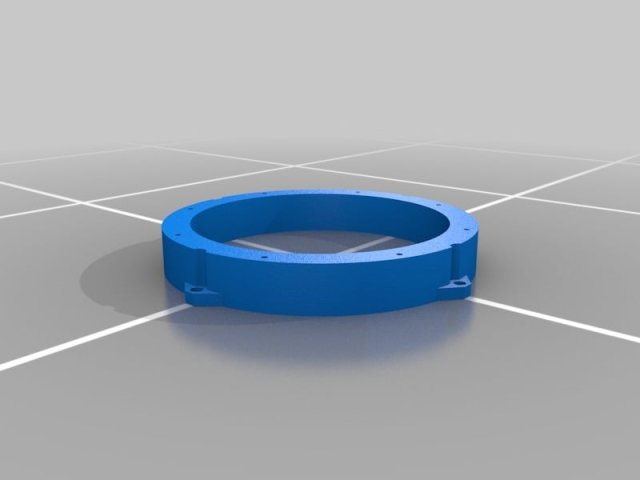

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Speaker Mount Bracket
Speaker Mount Bracket design listed for 2015 Kia Sportage. Listed category: mounts-brackets. Verify dimensions, fitment and material suitability before printing.
- Make
- Kia
- Model
- Sportage
- Year range
- 2015
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
Since it is in inches you can either use the "Barbarian Units" plugin for Cura or you can scale the model by 2540% in your slicer.
Update 7/8/18: This speaker ring as designed didn't quite work. I have redesigned it, and the new design now works. I've made it 1 inch thick and adjusted the mount screw spacing and rotated the mount tabs to be between the speaker screws. Also moved the wiring slot to a hole in the ring. It is a little small for terminals. I used #10x1/14 mount screws and #8x1 screws for the speaker. The screw holes as printed worked well.
I also used speaker gasket tape which I highly recommend: https://www.amazon.com/Parts-Express-Speaker-Gasketing-tape/dp/B0002ZPLPM/ref=sr_1_3?ie=UTF8&qid=1531112743&sr=8-3&keywords=speaker+gasket.
Source description, under the recorded CC-BY-4.0 license.
Print instructions
.2 or .3
Infill: 30% Notes: I used ASA with 3mm walls and 30% infill.
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
