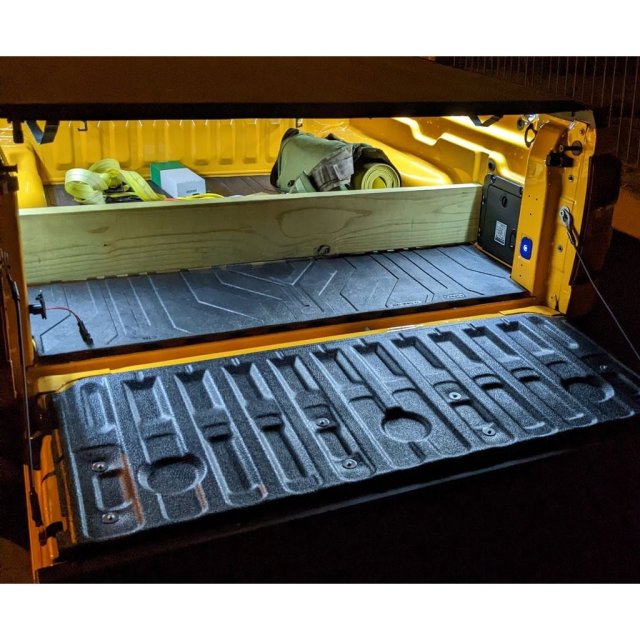

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Bed Light Mounting Clips
Bed Light Mounting Clips design listed for 2022 Ford Maverick. Listed category: lighting. Verify dimensions, fitment and material suitability before printing.
- Make
- Ford
- Model
- Maverick
- Year range
- 2022
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
These mounting clips are designed to nestle in on the tabs holding the plastic cover on the sides of the bed of your Ford Maverick. There's 8 on each side, so if you want to use every clip, you'll need 16 of Side One and 16 of Side Two.
I included a cut-out on each side to fit a metal washer -- once that is in place, I used a 6-32 3/4" machine bolt to hold the two halves together with a wingnut on the other end.
The LED light strip that this was designed to fit:
https://www.amazon.com/dp/B08CDJK423
The switch that I used to control it, that fits in the included faceplate:
https://www.amazon.com/dp/B08N4CBYLH
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $17.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $18.00 | General-purpose candidate; heat and creep need review. |
| ASA | $18.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $18.50 | Enclosed printing; review application and dimensions. |
| TPU | $20.00 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $20.00 | Moisture, tolerances and application require review. |
| PA-CF | $21.00 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
