Design by jrlucier · Original design · CC-BY-4.0 · Source details. Indexed via 3DCarParts. Source text and images remain credited to their creators; no modified design files supplied.

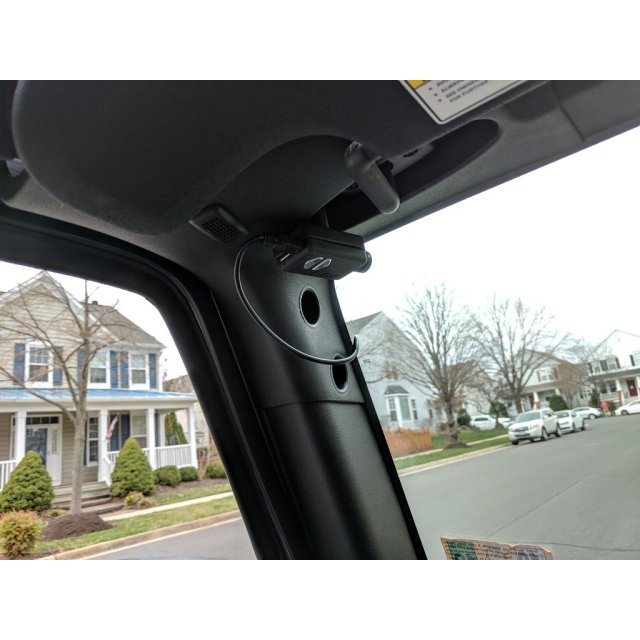

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Magnetic Dashcam Mount
Magnetic Dashcam Mount design listed for 2007–2018 Jeep Wrangler. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Jeep
- Model
- Wrangler
- Year range
- 2007–2018
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
The Mobius (v1) dashcam will slide in and out of the base, in which both the camera and the base are magnetically mounted (the camera magnetically clings to the base, and the base magnetically clings to a bolt). This allows for quickly stashing you dashcam if you're parking with the top down or similar. I also built it so it won't interfere with the sunvisor.
The base has a star pattern, so you can angle the direction of the camera as necessary.
Requirements:
- Print the 2 models in PETG, since we need heat resistance!
- You'll need 3 magnets, of type 12mm x 5mm N35 Super Strong Round Disc Rare Earth Neodymium Magnets. I bought mine here: https://www.umagnets.com/p/round-magnet-n50-12mm-x-5mm-nickel-plated/
- Super glue to glue them in with
- A mobius v1 action cam
- The Mobius actioncam mount/cradle that came with the device.
Install:
Glue the magnets in, make sure the polarities are the right direction first by test fitting! Add the printed adapter to the cradle that came with the device. Run a dash cam wire up the post, and mount. Tada!
Source description, under the recorded CC-BY-4.0 license.
Print instructions
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
