Garmin Ball Mount Device Holder
Garmin Ball Mount Device Holder design listed for 2017–2023 Ford F-Series Super Duty. Listed category: mounts-brackets. Verify dimensions, fitment and material suitability before printing.
- Make
- Ford
- Model
- F-Series Super Duty
- Year range
- 2017–2023
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
https://www.proclipusa.com/product/proclip-ford-center-dash-mount-extra-strength
Ford F250/350/450/550/Super Duty 2017 - 20xx Ford Expedition 2018 - 20xx

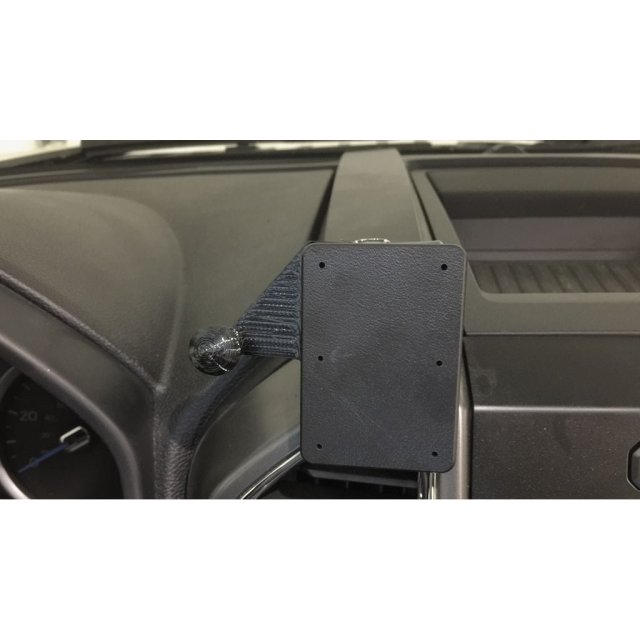

My last GPS mount design had its sticky fail when sitting mounted in 100+ degree days a few times over the last couple years. This annoyance got me to get the ProClip mount that doesn’t rely on double stick tape. Not thrilled with positioning it provided because I liked the display location of my previous design. So I created this Garmin Ball Device Holder that locks into the tapered middle of the ProClip mount. It requires no screws and sets the GPS to the left and nearer the dash then possible with a faceplate mounted ball.
Simple design that doesn’t require supports if you make sure the back side sits flush on bed surface. I print in PETG with .32mm layers out of a .5mm nozzle about as fast as my printer can go. Zero post processing, straight from printer bed to performing GPS mount duty.
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
