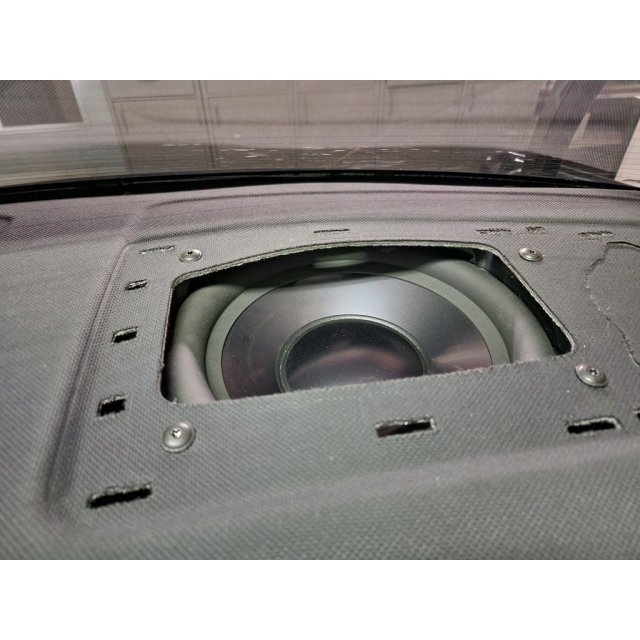

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Subwoofer Adapter Holder
Subwoofer Adapter Holder design listed for 2017–2020 Audi A3. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Audi
- Model
- A3
- Year range
- 2017–2020
- Submodel
- S3, RS3
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
10 inch Subwoofer adapter for Audi 8V and 8V5. Requires no cutting and can be reverted back to stock. It fits with a 10" Dayton RSS265HF-4 subwoofer and not bigger, I checked a few models and it seems that's the biggest I could find that fits.
****Please be aware I added 10mm on top of sub so the travel of the cone doesn't hit the top cover. This create a slight and subtle bump, but is noticeable if you look at it througt the rear view mirror, see photo.****
****please use ABS or ASA ****
The parts used:
-Dayton RSS265HF-4
-4mm speaker terminal https://a.co/d/53Oe7Fq
-6x #10 Size, 1" Long (McMaster 96001A409)
-2x M3 metal screw
Other optional:
-Noico 80 mil (2mm) Sound deadening mat https://a.co/d/8aERGxD
-Speaker Level Converter with auto-ON https://a.co/d/2j6jD2T
V2 update: I thickened walls from 3mm to 4mm by request, bot and top. Also added option to mount terminal on the other side (you will have to drill holes).
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $42.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $43.50 | General-purpose candidate; heat and creep need review. |
| ASA | $50.00 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $48.00 | Enclosed printing; review application and dimensions. |
| TPU | $60.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $60.00 | Moisture, tolerances and application require review. |
| PA-CF | $69.00 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
