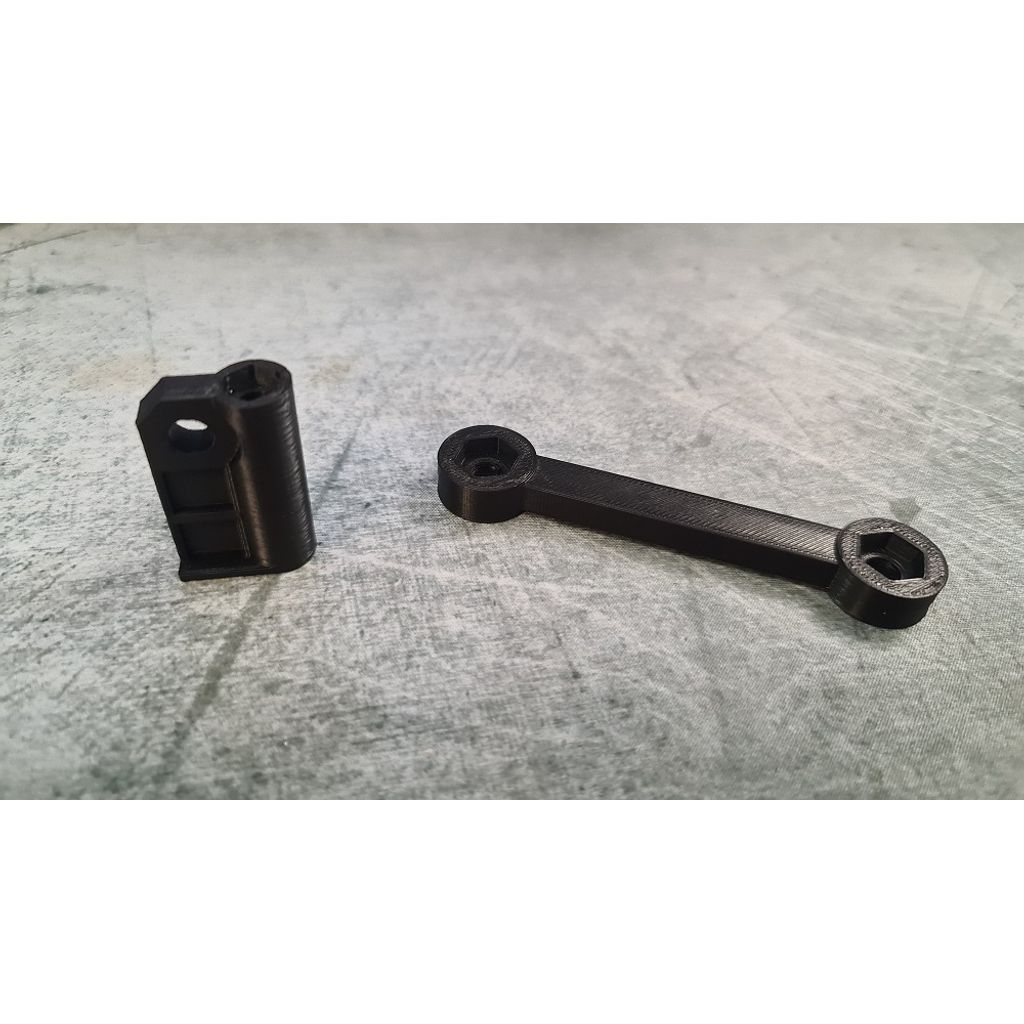

Leveling sensor arm
Leveling sensor arm design listed for 2015–2021 Audi Q7. Listed category: exterior. Verify dimensions, fitment and material suitability before printing.
- Make
- Audi
- Model
- Q7
- Year range
- 2015–2021
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
You need also a few hardware to complete this, I highly recommend use only stainless steel screw, washer and self locking nut.
1 pcs M5x45 screw
1 pcs M5 self locking nut
1 pcs M5 washer
2 pcs M6x25 screw
4 pcs M6 self locking nut
4 pcs M6 washer
Assembly instructions:
Insert 2 M6 screw in the arm and push it until a the screw head is flush with the surface, and a washer and a nut. Tighten it about 10-20Nm enough. Then insert the oher part onto one of the M6 bolts, add a washer and a nut. But this time tighten it carefully to move freely. Mount the whole mechanism onto the senzor arm with the other nut and washer, again carefully, it's need to move freely to.
With the M5 screw you can fix the arm into the original mounting hole in the upper wing arm in the car.
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
