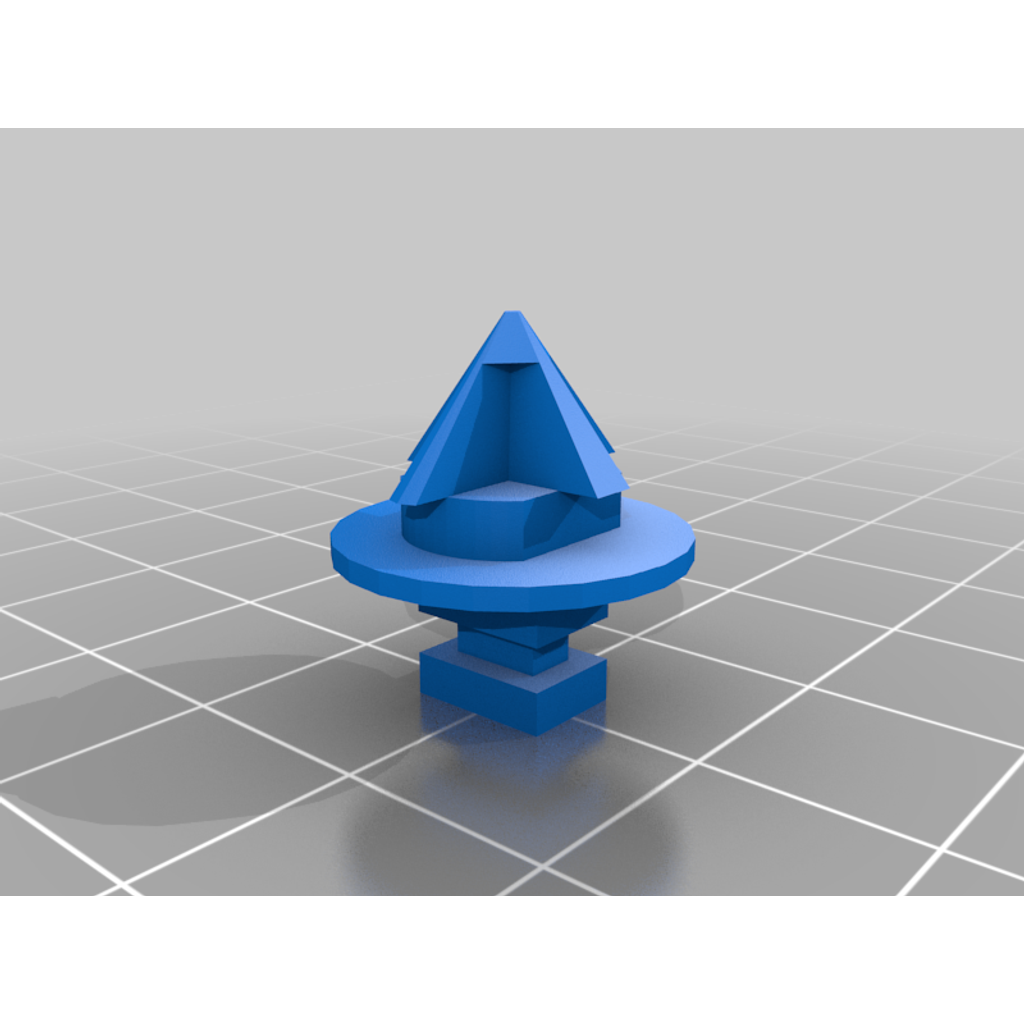

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Plastic Body Trim Peg Clip
Plastic Body Trim Peg Clip design listed for 1991–1996 Subaru SVX. Listed category: exterior. Verify dimensions, fitment and material suitability before printing.
- Make
- Subaru
- Model
- SVX
- Year range
- 1991–1996
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
These are pegs / clips for holding on body panel trim pieces on a Subaru SVX. I created this to replace a broken peg that was holding on the lower plastic trim piece at the bottom of my drivers side door, no clue if it works elsewhere on the car.
It's not perfect, by the generation number you can see it took me 15 tries to get it where it is right now. This 15th generation worked the best, but there is probably more refinement that could be made as the body panel isn't perfectly flush (but quite close!)
Feel free to print out, try out, and let me know how it works for you, and if you have any recommended adjustments to make it more perfect. Going back and forth from my house to my removed garage during the winter to test out prints and variations got tiring and I gave up at the 15th generation.
Included are two STL variations. I believe the 15th is the one I am using, where the 15.5 is a more solid variant, but both should hold up for their intended purposes. The slot in the steel body of the car should be oval/rectangle shaped, so you want to slide the rectangle side in to the body, then turn it a quarter turn to lock it in place.
Also included are the two Sketchup files, so you can load it up yourself to make adjustments as you see fit. Sketchup is a free program and pretty easy to use/learn.
Print with supports.
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $17.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $18.00 | General-purpose candidate; heat and creep need review. |
| ASA | $18.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $18.50 | Enclosed printing; review application and dimensions. |
| TPU | $20.00 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $20.00 | Moisture, tolerances and application require review. |
| PA-CF | $21.00 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
