Door Wiring Protection Sleeve
Door Wiring Protection Sleeve design listed for 1976–1986 Mercedes-Benz W123. Listed category: electrical. Verify dimensions, fitment and material suitability before printing.
- Make
- Mercedes-Benz
- Model
- W123
- Year range
- 1976–1986
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description

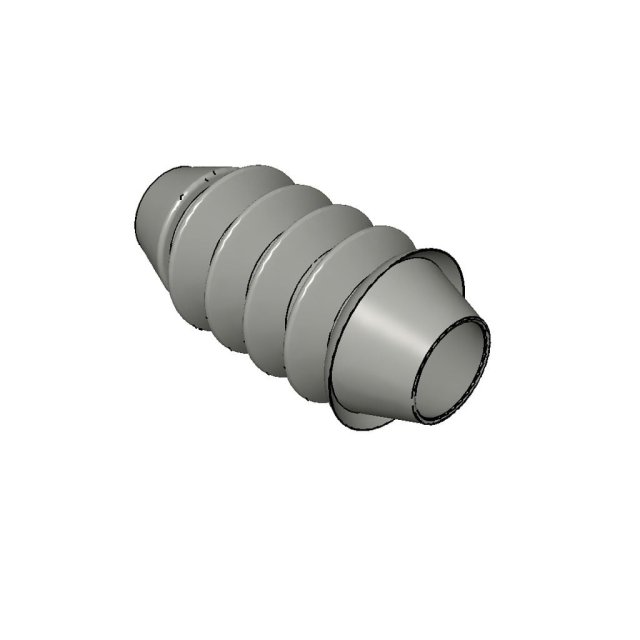

In the file you will find a protective sleeve for the Mercedes W123, which protects the wiring routed into the door.
I printed it with flexible filament from Sain Smart.
The print result is, as always, a matter of settings.
Make sure that the end with the sealing lip is facing upward in the slicer.
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
