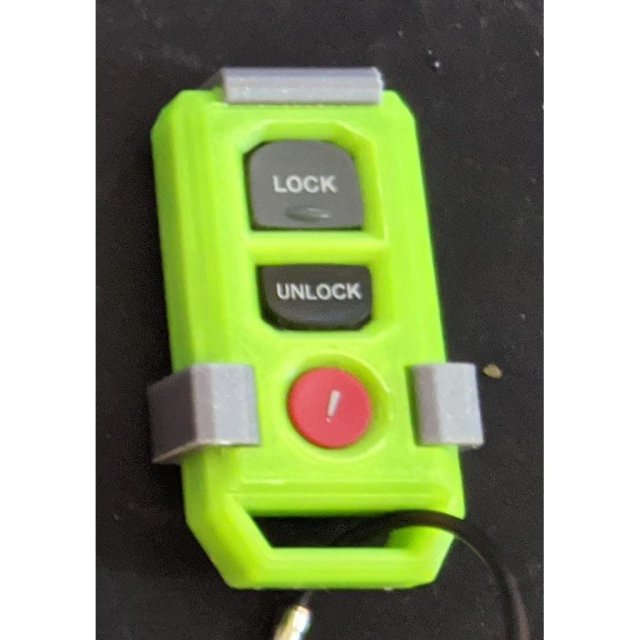

Key Fob Case
Key Fob Case design listed for 2007 Mazda Mazda3. Listed category: electrical. Verify dimensions, fitment and material suitability before printing.
- Make
- Mazda
- Model
- Mazda3
- Year range
- 2007
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
To Print the Fob
Print two "Button Side Latch", print one of everything else.
Also attached is the Prusa Slicer file with settings I used to print.
PLA. 0.2mm Layers. 100% Infill. Supports with 55 deg overhang threshold. Brim required around latch pieces. Print time 2 hours and change with my settings.
**DO NOT LEAVE IN SUN / HOT CAR / TEA KETTLE IF MADE WITH PLA**
**UNTESTED IN ANY OTHER MATERIAL. PETG COMPATIBLE FILES IN PROGRESS**
The side latches are symmetrical. Just click them in. The front latch has a short latch and a long latch. Orient with long latch on top.
You may need to sand some parts to fit. There is a gap between the top and bottom parts of the case I am working to resolve.
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
