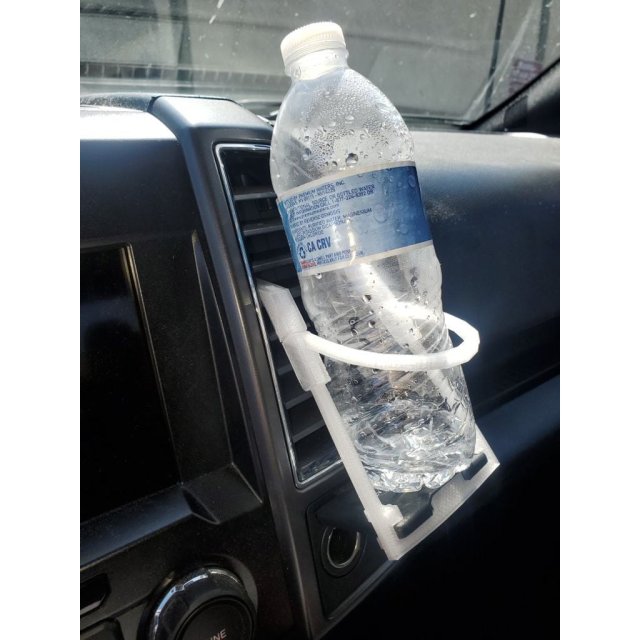

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
A/C Vent Bottle Holder
A/C Vent Bottle Holder design listed for 2015–2020 Ford F-150. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Ford
- Model
- F-150
- Year range
- 2015–2020
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
While my original design was ok it was a little on the finicky side. If I wasn't careful pulling the bottle out then the holder came with it.
This revision stays in place and just feels much more solid. I added little gripper blocks to the bottom to make the arm hold on to the power door better. And the two vent clips are thicker and just bigger and stronger now. They are a little harder to get into the vents now but once they are in they stay in. You kind of have to snake them into the vents. Insert sideways then straighten them out.
It is a 3 piece print now. The main arm, the loop, and 2 vent clips. The 2 vent clips are on a common brim. There is a little bridge work but overall it is a very easy print.
I printed these one at a time then cleaned them up a little and then I glued them together with super glue. I had to clean up the bottom corners of the 5X5 arms where they rest on the bed, just enough to make the 5X5 arms 5X5 again, so the loop and vent clips will slide on to the arms.
I printed these in PETG .2 layer 50% infill. It prints with no rafts brims or supports.
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $42.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $43.50 | General-purpose candidate; heat and creep need review. |
| ASA | $50.00 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $48.00 | Enclosed printing; review application and dimensions. |
| TPU | $60.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $60.00 | Moisture, tolerances and application require review. |
| PA-CF | $69.00 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
