Design by Clerenyvald · Original design · CC-BY-SA-4.0 · Source details. Indexed via 3DCarParts. Source text and images remain credited to their creators; no modified design files supplied.

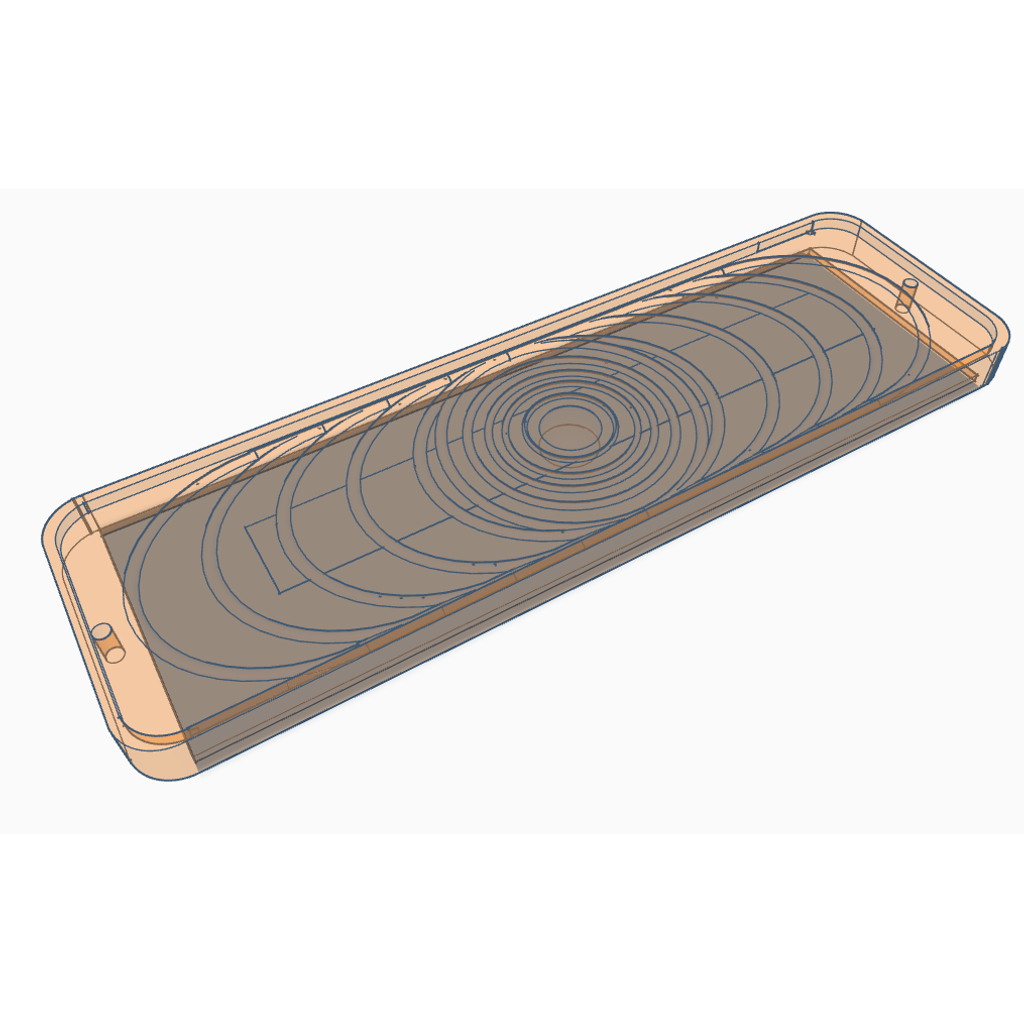

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Front Grille Turn Signal Lens
Front Grille Turn Signal Lens design listed for 1974–1977 Ford F-100. Listed category: lighting. Verify dimensions, fitment and material suitability before printing.
- Make
- Ford
- Model
- F-100
- Year range
- 1974–1977
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
Front Grill Turn Signal Lens
The standard front grill-mounted turn signal lenses for 1974–1977 Ford trucks generally follow these specifications:
Approximate Dimensions: 8.47" L x 2.62" W x 2.86" H.
Lens Type: These are typically rectangular clear or amber lenses that mount directly into the grill.
Fitment: Parts like the D5TZ-13200-A are designed specifically for the 1975–1976 model years and fit both driver and passenger sides.
For a 1975 Ford truck (F-100, F-150, F-250, or F-350), the two front mounting holes on the turn signal lens are spaced 4-9/16 inches (approximately 116 mm) apart.
Mounting Details:
Lens Part Number: This spacing corresponds to the standard rectangular lens used for the 1975–1976 model years, often identified by Ford part number D5TZ-13200-A.
Screw Placement: There are two screws—one on the left and one on the right of the lens—that pass through these holes to secure the lens directly to the bulb housing/bucket assembly.
Housing Opening: Behind the lens, the bulb assembly usually fits into a 2-inch circular hole in the grill or valance.
Fitment Variations
Early vs. Late 1975: This 4-9/16" spacing is typical for "early" 1975 models (before serial number C50,001) which featured clear lenses.
Comparison: If you find aftermarket lenses where the holes do not line up, they may be intended for the 1973–1974 or 1977–1979 models, which used different grill and light configurations
Source description, under the recorded CC-BY-SA-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $57.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $59.00 | General-purpose candidate; heat and creep need review. |
| ASA | $69.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $66.00 | Enclosed printing; review application and dimensions. |
| TPU | $85.00 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $85.00 | Moisture, tolerances and application require review. |
| PA-CF | $99.00 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
All available source data
- Id
- ec705feb-9103-4ff9-91ff-832feb479a0c
- Part Name
- Front Grille Turn Signal Lens
- Slug
- front-grille-turn-signal-lens
- Category
- lighting
- Cswp Approval Status
- pending
- Download Status
- approved
- Make
- Ford
- Model
- F-100
- Year
- 1974
- Year End
- 1977
- Submodel
- Not supplied
- Engine
- Not supplied
- Created At
- 2026-07-08T07:39:57.34325+00:00
- Origin
- aggregated
- Source
- thingiverse
- Source Url
- https://www.thingiverse.com/thing:7314921
- Source Creator Url
- https://www.thingiverse.com/Clerenyvald
- Cc License Code
- CC-BY-SA-4.0
- Cc License Url
- https://creativecommons.org/licenses/by-sa/4.0/
- For Sale
- No
- Fulfillment Mode
- platform
- Manual Price Cents
- Not supplied
- Image Url
- https://r2-upload.3dcarparts.workers.dev/file/parts/ec705feb-9103-4ff9-91ff-832feb479a0c/images/front-grille-turn-signal-lens-1_1783496398268_3l5n6h.jpg
- Author
- Clerenyvald
- Estimated Price Cents
- Not supplied
- HasMultipleModelFiles
- No
- ModelFileCount
- 0
- Download Count
- 0
- Detail Url
- https://3dcarparts.org/library/1974-1977/Ford/F-100/front-grille-turn-signal-lens
Source price fields and sale flags are metadata, not our selling prices. Their currency was not specified in the catalog. File counts do not mean files were downloaded or tested. No manufacturer savings or discontinued status is inferred.
