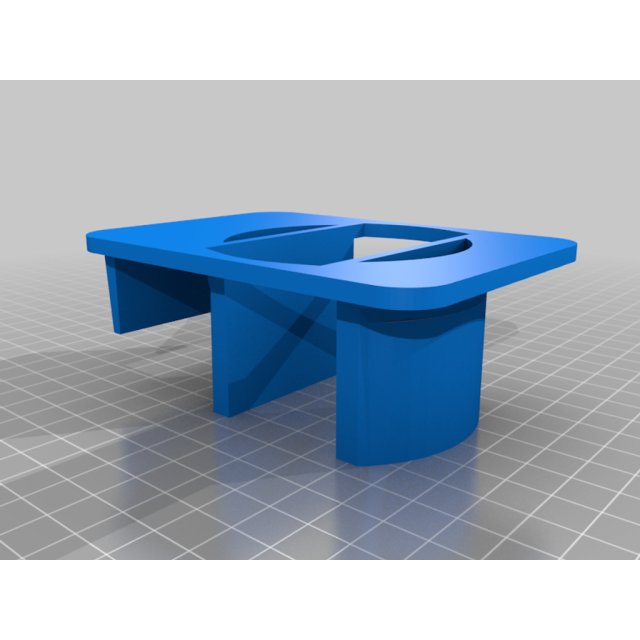

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Air Vent Can/Bottle Cooler Holder
Air Vent Can/Bottle Cooler Holder design listed for 1997–2006 Jeep Wrangler. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Jeep
- Model
- Wrangler
- Year range
- 1997–2006
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
There are two versions of this cooler, both works very well on my 2001 Wrangler:
RED - A bit larger on the outside as it holds the bottle in an angle to keep it away from the dashboard and the audio / navigation screen.
PURPLE - looks slimmer but has the same capacity, hold the bottle as close as possible to the dashboard and therefore may interfere when in front of a touch screen.
Personally I prefer the red version as it is not interfering with my touch screen.
The third part of the Red version is an optional bridge you need to glue in place in order to control the airflow and keep the bottle in the middle of the holder.
Apart from the four holes (for screws holding the container part) which only exists on the PURPLE version, the two Vent parts are identical.
Both versions can be used on center or side (window) vents. On center vents the holders are held with a latch preventing them from accidentally turning with vent’s bearing.
----
Sep 14, 2015 - Added a vent part that has a small bump to help "click" the part in the vent nozzle and prevent it from sliding out when driving off-road.
RED Bottle Cooler Part B - Vent with bump.stl
Source description, under the recorded CC-BY-SA-4.0 license.
Print instructions
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $42.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $43.50 | General-purpose candidate; heat and creep need review. |
| ASA | $50.00 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $48.00 | Enclosed printing; review application and dimensions. |
| TPU | $60.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $60.00 | Moisture, tolerances and application require review. |
| PA-CF | $69.00 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
