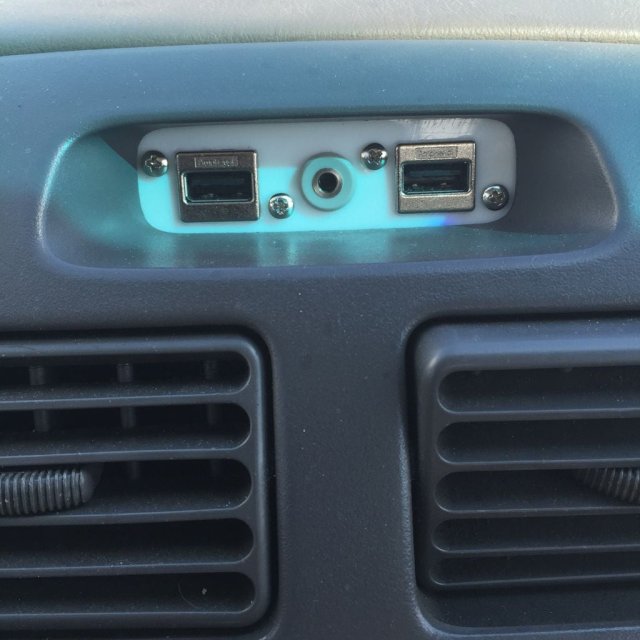

Clock Panel Replacement
Clock Panel Replacement design listed for 1999 Toyota Corolla. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Toyota
- Model
- Corolla
- Year range
- 1999
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
I chose USB ports that transferred insertion force to the panel they were mounted in, and paid a ridiculously high price for them. https://www.digikey.ca/product-detail/en/amphenol-commercial-products/MUSB-A511-00/MUSB-A511-00-ND/1242675
The 3.5mm/1/8th in audio jack for AUX in was far more reasonable. http://www.btw-electronics.net/PLUGS-JACKS-ADAPTERS-CABLES-CONNECTORS/3.5mm-mono,-snap-in-type-panel-mount-phone-jack,-70-533,-philmore?sort=p.model&order=DESC&page=4&limit=50
Both connectors had the advantage of having very specific measurements for their needed cutouts online.
Some photos show an earlier prototype.
UPDATE 17 JUNE 2016: The part has begun to deform due to heat and no longer clips into the dash. This is in relatively moderate Toronto spring temperatures, so using PLA for this Thing is not advised. I will shortly print it again in high temp PLA or ABS.
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $57.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $59.00 | General-purpose candidate; heat and creep need review. |
| ASA | $69.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $66.00 | Enclosed printing; review application and dimensions. |
| TPU | $85.00 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $85.00 | Moisture, tolerances and application require review. |
| PA-CF | $99.00 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
