Trunk Hook
Trunk Hook design listed for 2013 Volvo V40. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Volvo
- Model
- V40
- Year range
- 2013
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description

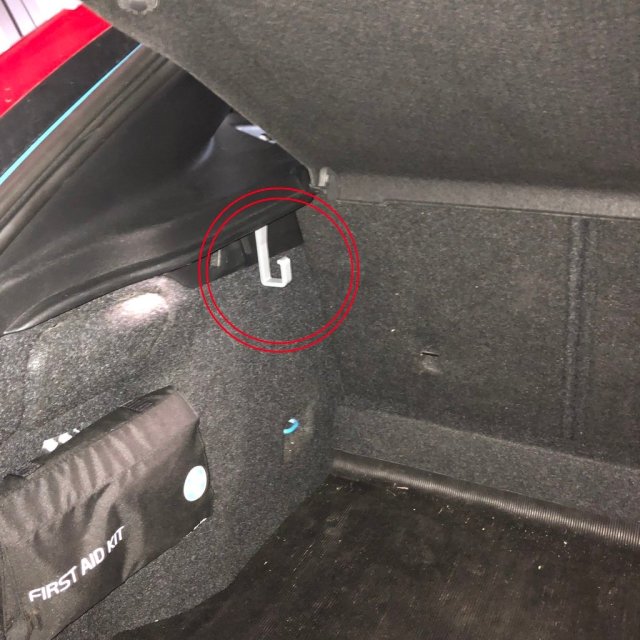

Designed this Trunk-hook for my Volvo V40. Keeps grocerybags and other stuff from sliding all over the place in the trunk. Made of 3 parts to get maximum strength. Assemble the parts with some suitable screws. You can see the dimmensions of the screws I used in the pictures. Similar screws will do just fine.
Fasten hook to the baseplate first, tread it into the holes in the trunk, and then secure it in place with the lockplate. The hook is angled 6 degrees onto the baseplate, because the holes in the trunk is about 6 degrees angled.
My V40 is a 2013 model, but I guess it will fit earlier/later V40's also.
If you make this, I would appriciate it if you upload a picture of it! Enjoy! =)
Source description, under the recorded CC-BY-4.0 license.
Print instructions
Brand: FlashForge
Printer:
Finder Rafts: No Supports: No Resolution: 0.25 Infill: 10% to 20%
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
