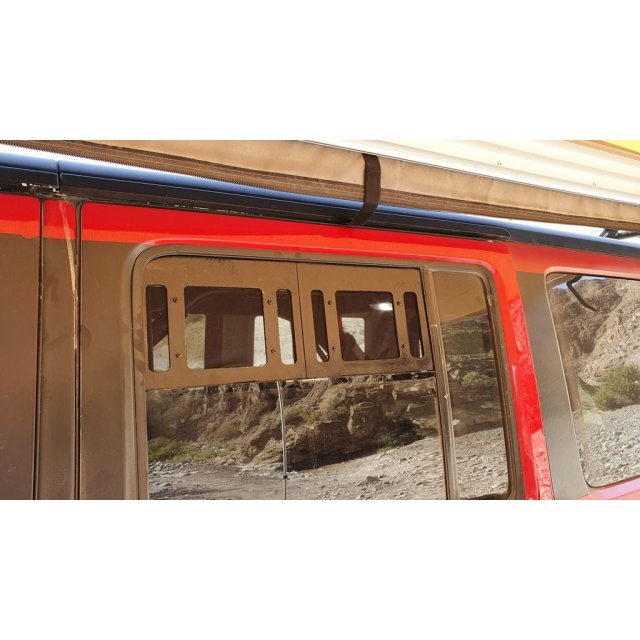

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Window Insert Ventilation Screen
Window Insert Ventilation Screen design listed for 2007–2018 Jeep Wrangler Unlimited. Listed category: exterior. Verify dimensions, fitment and material suitability before printing.
- Make
- Jeep
- Model
- Wrangler Unlimited
- Year range
- 2007–2018
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
So for ventilation, while we sleep, and to keep the bugs out, I looked for a solution. I couldn't find anything so I designed this.
You unfold it into the window slide and then roll up your window until it pushes in place.
You will need:
Some kind of net
3x 25mm 3mm Bolts with Nuts (For the hinge)
I used some leftover 3mm bolts to bolt on the net frames to the folding parts but you can use glue
PENDING: I am working on adding a 120mm 5V fan to the holes in the middle.
Still working on it as I go. Please feel free to leave comments for improvements.
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
