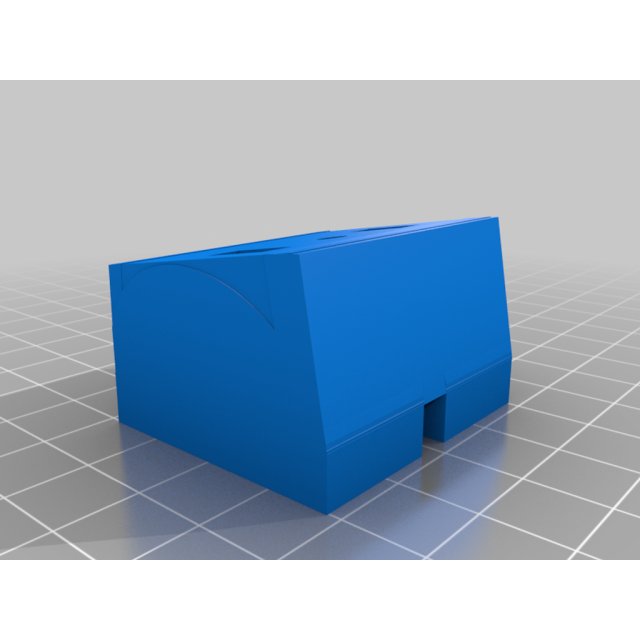

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Hood Light Mount Adapter
Hood Light Mount Adapter design listed for 2005–2015 Toyota Tacoma. Listed category: mounts-brackets. Verify dimensions, fitment and material suitability before printing.
- Make
- Toyota
- Model
- Tacoma
- Year range
- 2005–2015
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
Using the adapters as a template drill two 1/8" holes in the hood, being careful not to drive the drill bit up into the external sheet metal. Fasten the adapters to the hood with a pair of #10 x 3/4" sheet metal screws, then mount each light to its adapter with another #10 x 3/4" sheet metal screw. I needed a washer for the screws that hold on the lights since the light mounting hole is large. No washers needed to hold the printed adapters to the hood. Wire up as directed... you will need to extend some of the light wires to reach this location.
Print with the narrow side down so you won't need supports. The narrow side is the top side that gets mounted against the hood, notch towards the back. The 2 mounting sheet metal screws fit in the recessed pockets.
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
