Roll Bar Gear Hook
Roll Bar Gear Hook design listed for 2007–2018 Jeep Wrangler. Listed category: mounts-brackets. Verify dimensions, fitment and material suitability before printing.
- Make
- Jeep
- Model
- Wrangler
- Year range
- 2007–2018
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
I used some bungees for hanging stuff from the horizontal top bar but it was difficult to hook and unhook items. After a series of 3 creation failures (PETG is very flexible) I ended up incorporating hook loop strips into this solution and is now working fine for getting items off the floor (more dog room). Easy to hook a strap for travel and unhook for use without needing a full reach in to manipulate both the hook and handle.

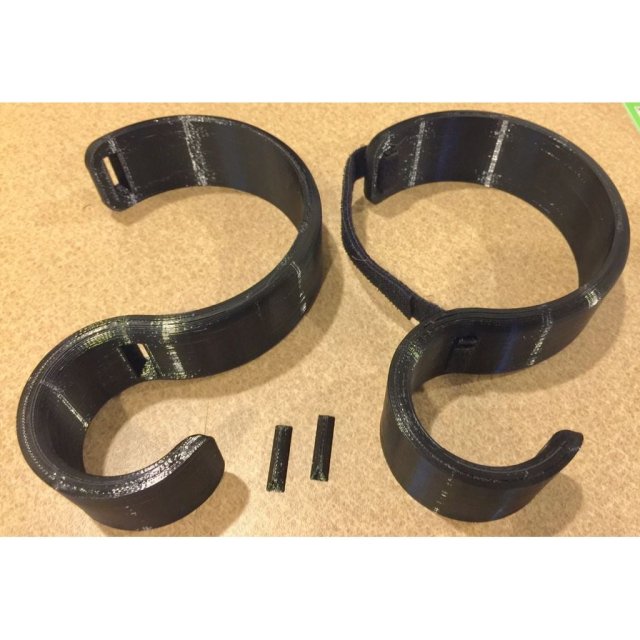

The canvas bag pictured is quite heavy. It destroyed the first version and didn't last long with a double thick version but so far so good with this thicker wider velcro strapped snug version. The little V plug helps keep the hook & loop straps securely mounted in the S-Hook body.
I used 3/4" double sided velcro/hook & loop strapping (~20mm). The V holds in place best if the rough/loop side of the strap is in contact with the V surfaces e.g. smoother side out. Once snugged into place for awhile the V plugs hold the strap in place for repeated open/close efforts.
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
