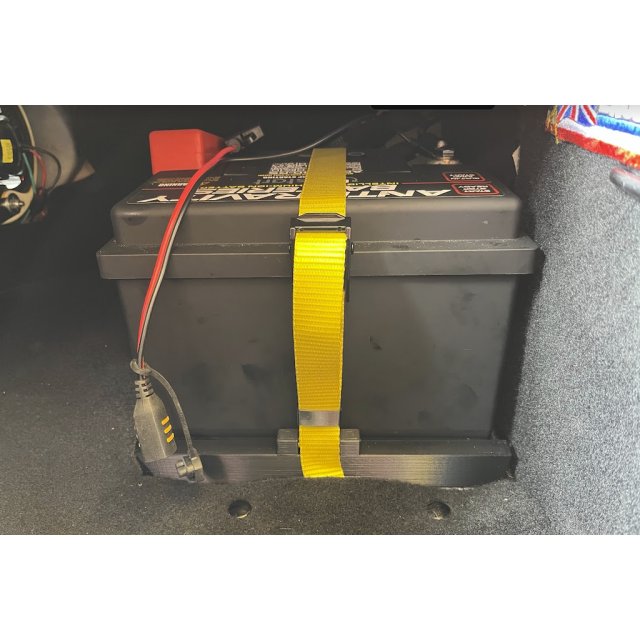

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Battery Hold Down Clamp
Battery Hold Down Clamp design listed for 2008 Lotus Elise. Listed category: mounts-brackets. Verify dimensions, fitment and material suitability before printing.
- Make
- Lotus
- Model
- Elise
- Year range
- 2008
- Submodel
- SC
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
The Antigravity H5/Group 47 Lithium Car Battery is a 12 volt battery that is the same size as a standard H5 or Group 47 car battery, but weighs just 14.25 pounds and delivers 1500 cranking amps. However, even though this reduced the weight of a lead acid battery (weighing over 33 lbs), the OEM Lotus Elise hold down clamp may not retain a H5/Group 47 battery securely.
Note that the Lotus Elise is a hand-build car and the attachment points might vary from car to car. No guarantee is made that the clamps will line up with the boltholes on all cars.
The clamp components are printed in ABS. However, the band loop to secure the end of the tie down is printed in TPU. The cap screws are M5x50 with stainless lock nuts. The tie-down strap is modified by cutting off one hook with a hacksaw and then shortening the strap.
Source description, under the recorded CC-BY-SA-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
