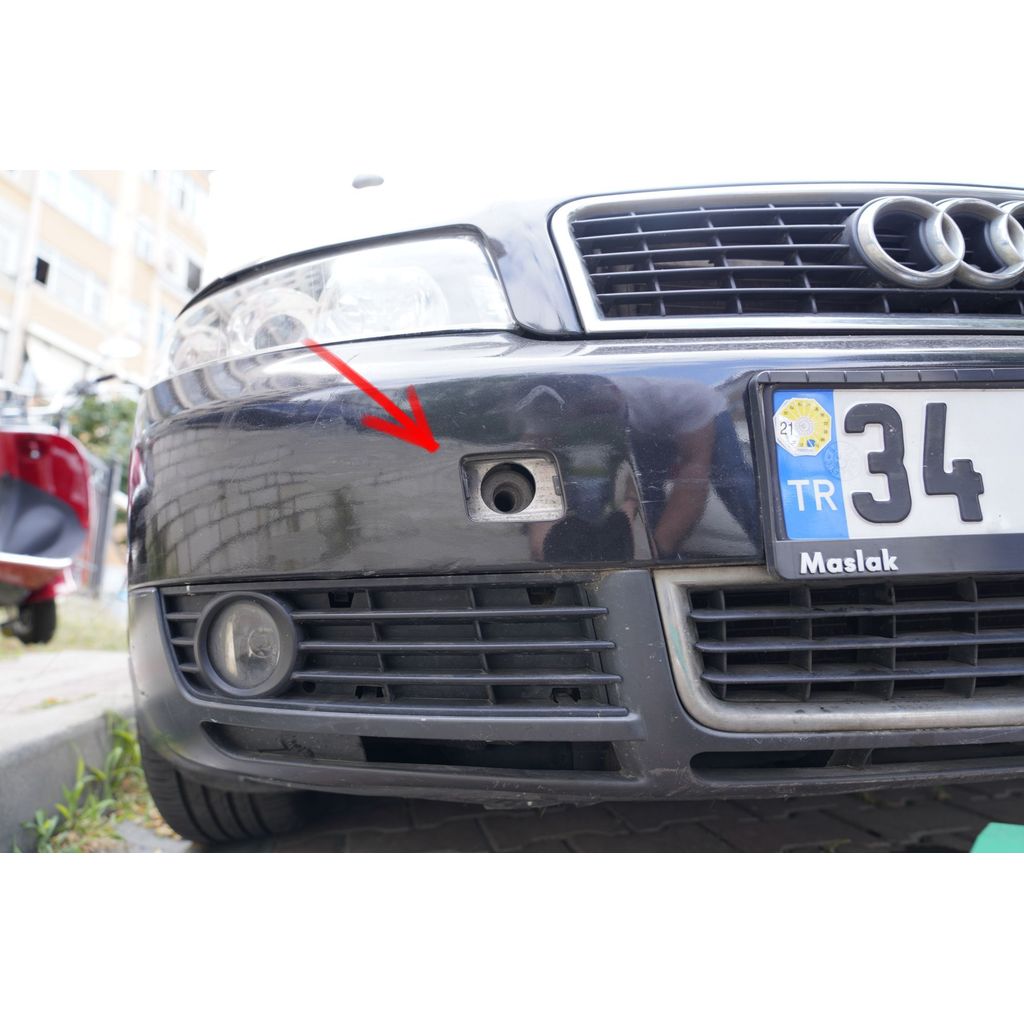

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Tow Hook Cap
Tow Hook Cap design listed for 2001–2005 Audi A4. Listed category: exterior. Verify dimensions, fitment and material suitability before printing.
- Make
- Audi
- Model
- A4
- Year range
- 2001–2005
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
This listing is not offered for sale. Commercial permission or application suitability needs review.
Description
The thing contains 3 parts: The cap itself, the hook that pins the cap to the bumper (couldn't find a better name) and a pin that secures the cap to the car (also couldn't find a better name). The hook needs to be glued to the rear of the cap. I designed it in that way, because if you still have the original metal hook then you can use that too. But the hook that I designed works well too. The only issue is that it is not very easy to remove. But I think it is a good thing.
FreeCAD file is included and please remix this thing.
Oh one nice note about the design is that I have scanned the bumper of the car with [AliceVision Meshroom](https://alicevision.org/#meshroom) and it worked super well. The related part of the scanned model is included in the FreeCAD file.
I printed it with PLA+ but I guess PETG is a better choice. Use %100 infill.
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $21.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $21.50 | General-purpose candidate; heat and creep need review. |
| ASA | $23.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $22.50 | Enclosed printing; review application and dimensions. |
| TPU | $26.00 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $26.00 | Moisture, tolerances and application require review. |
| PA-CF | $28.00 | Filled nylon; abrasive filament and fit need review. |
Cost examples only. This design is not offered for sale; permission or specialist application review is required.
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
