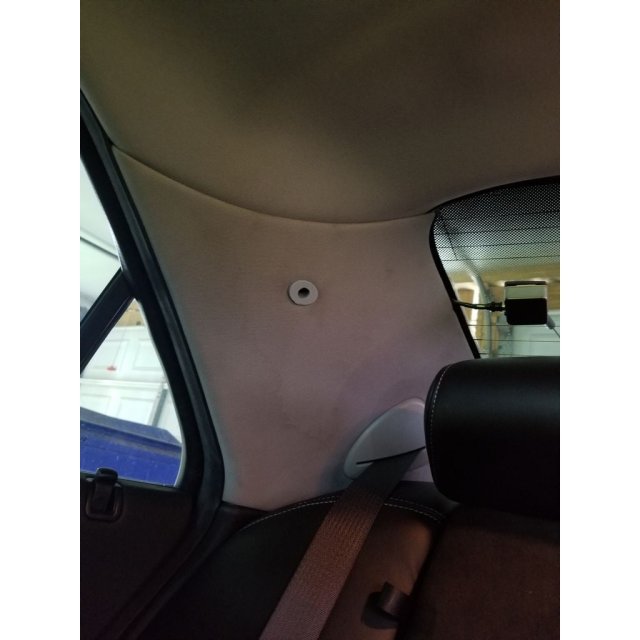

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Sail Panel Bracket
Sail Panel Bracket design listed for 2004 Cadillac CTS-V. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Cadillac
- Model
- CTS-V
- Year range
- 2004
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
If enough of the internal bracket remains, this may be repaired with a washer attached to the remaining bracket and replacement #8 x 1/2 inch screw. The retainer this screws into is not actually threaded.
If not enough of the internal bracket remains, this thing can be used to replace both the internal bracket and the clip on cover that says "Air Bag".
Requirements:
Metal screws in size #8 x 1/2 inch with a 7mm hex washer slotted head
7mm hex bit driver
Barbecue skewers
After removing the clip on covers, I snapped off the remaining cracked plastic on the end of the internal bracket, then inserted the printed bracket through the access hole and used a barbecue skewer to align it with the retainer while pressing the sail panel against the C pillar. Then I removed the skewer and used a printed bit driver extension with 7mm hex bit driver to insert and tighten the screw lightly.
