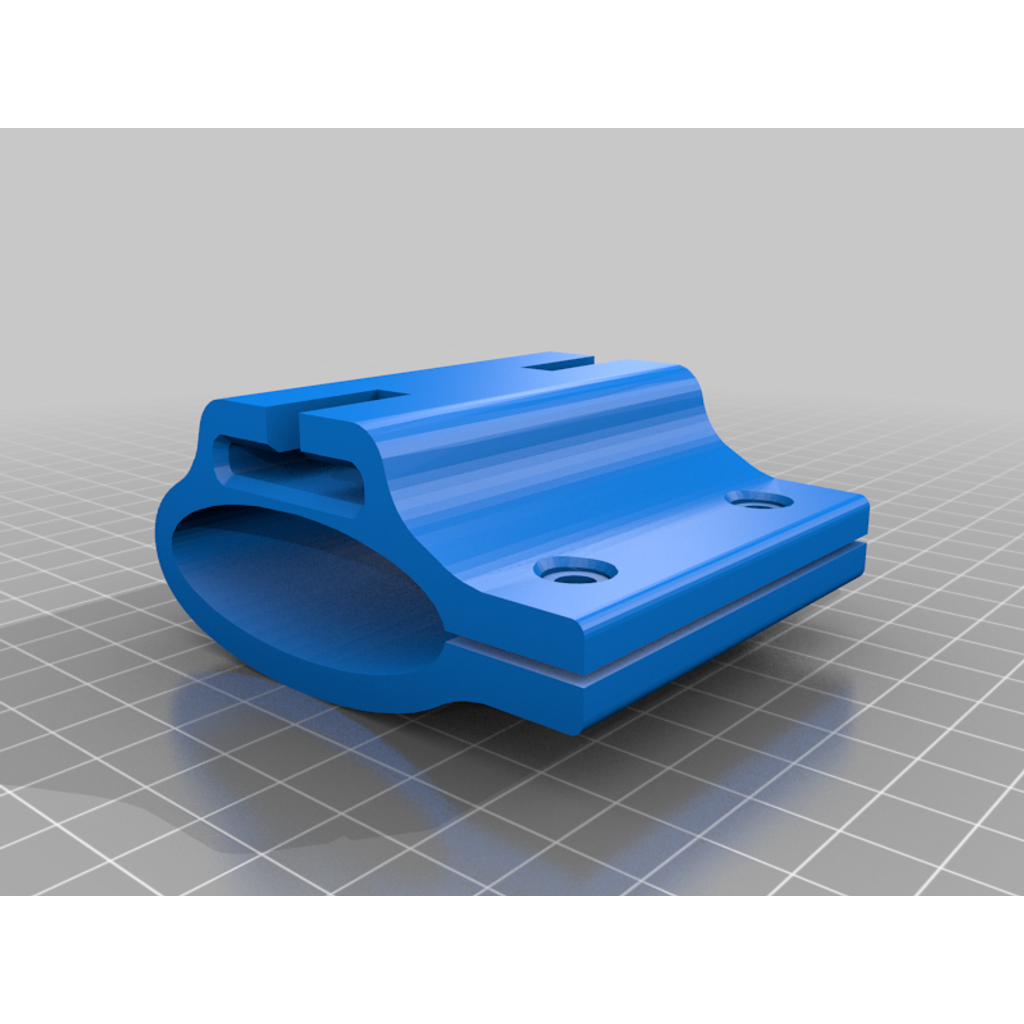

GMC Chevy Roof Rail Bracket
GMC Chevy Roof Rail Bracket design listed for 2008–2014 GMC / Chevrolet Yukon / Tahoe / Suburban. Listed category: exterior. Verify dimensions, fitment and material suitability before printing.
- Make
- GMC / Chevrolet
- Model
- Yukon / Tahoe / Suburban
- Year range
- 2008–2014
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
I remixed Johnranderson's design.
One is simply a scaled down version of the original (about -25%).
The second has been adapted to have slots for the carriage bolts on my Thule ski rack and
I added a reinforcement block in the center of the top slot.
I assume they'll work for any 2008 to 2014 Yukon, Tahoe, or Suburban roof rail, but I haven't tried it. They may even work for other GM SUVs or any suv with a oval shaped rail.
I printed with 5mm settings on wall, top, and bottom layers. No infill. Standard quality.
I plan to also make a version that has a post to fit my Yakima ski rack and bike rack.
