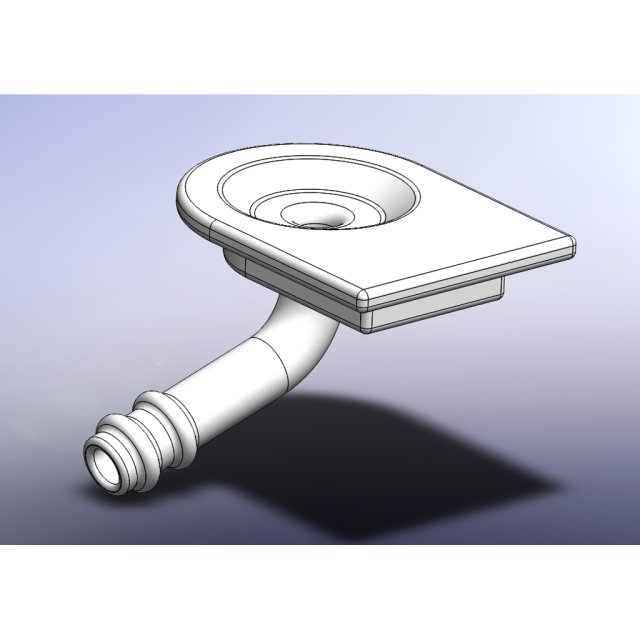

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Power Antenna Drain Fitting
Power Antenna Drain Fitting design listed for 1970–1989 Mercedes Multi-Model. Listed category: exterior. Verify dimensions, fitment and material suitability before printing.
- Make
- Mercedes
- Model
- Multi-Model
- Year range
- 1970–1989
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
<p>This is the drain fitting for Hirschmann power antennas used in European cars from the 1970s-80s (Mercedes, BMW, etc). It is used to funnel water that may seep past the radio antenna out of the car down a drain tube. The outer diameter of the tube fitting is 4mm which is made to work with the original drain tube. If the original drain tube is missing, use any tube with an inner diameter of 4mm. </p>
<h2>Installation</h2>
<p>Follow pictures for installation. The part fits snugly at the bottom of the power antenna housing. Apply a layer of silicone around the lip for a watertight seal.</p>
<h2>Printing Instructions</h2>
<p>DO NOT PRINT WITH PLA! Water may, over time, cause the PLA plastic to deteriorate. ABS or PETG is recommended for this part. Print with the tube fitting parallel with the build plate, as shown in the photos. Do NOT use supports inside the tube fitting. Tree supports are recommended (touching build plate only).</p>
<h2>Application</h2>
<p>This part will fit the following cars:</p>
<ul>
<li>Mercedes r107 (450 SL/SLC).</li>
<li>Mercedes w123.</li>
<li>Mercedes w116.</li>
<li>Any car with the Hirschmann model 6000H 485 power antenna</li>
</ul>
Source description, under the recorded CC-BY-SA-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
