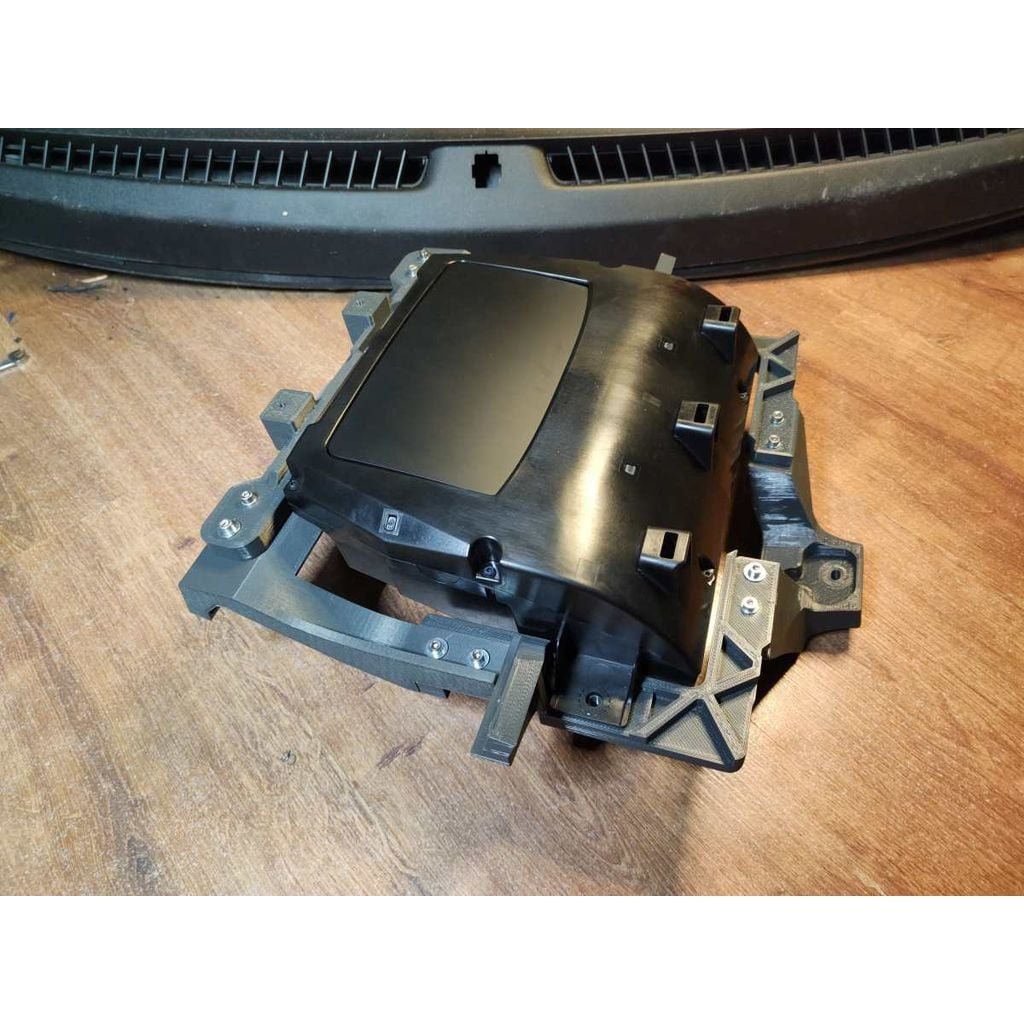

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
HUD mount
HUD mount design listed for 2018 Ford Focus. Listed category: mounts-brackets. Verify dimensions, fitment and material suitability before printing.
- Make
- Ford
- Model
- Focus
- Year range
- 2018
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
This is a preliminary version of HUD (headup display) mounting frame for Ford Focus MK4.
Retrofitting HUD is complicated and requires many operations. Main problem is to mount the HUD since the part which holds the HUD is not specified as spare part, it always comes with the complete dashboard, thus very, very costly. My project gives an option not to use this expensive part.
The other problem is to cut the dash, so that all mounting holes are in the right place. I have designed some stencils parts which gives a perfect locations for all wholes and easy cutouts.
Stencils are not scaled up! They can be printed in PLA for ease.
Galleries and post-mount info: https://www.formod.eu/hud.php
Source description, under the recorded CC-BY-SA-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
