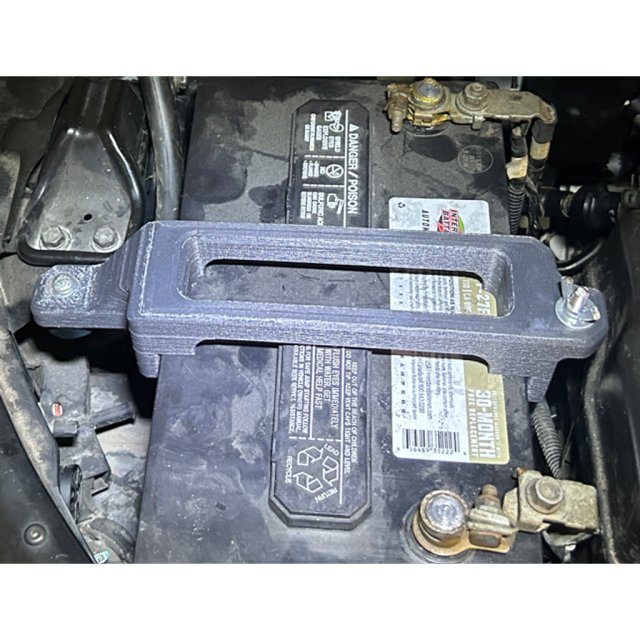

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Battery Hold-Down Clamp
Battery Hold-Down Clamp design listed for 1992–2000 Lexus SC300/SC400. Listed category: mounts-brackets. Verify dimensions, fitment and material suitability before printing.
- Make
- Lexus
- Model
- SC300/SC400
- Year range
- 1992–2000
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
I printed mine on my Prusa MK3 and you need a print bed at least that big (250x250mm.) I had to chamfer the corners and print it diagonally to make it fit.
You'll have to get your own 5x1.0x25mm screw of your preferred flavor, and a 'J' bolt and nut. I bought a cheap 'universal' hold down kit and adapted the bolt by spreading out the hook end a little and cutting it to length. Or you can try to find Lexus PN 74451B online if you want. I used this one from O'reilly: http://pcx6.2.vu/1 if the link works.
Source description, under the recorded CC0-1.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
