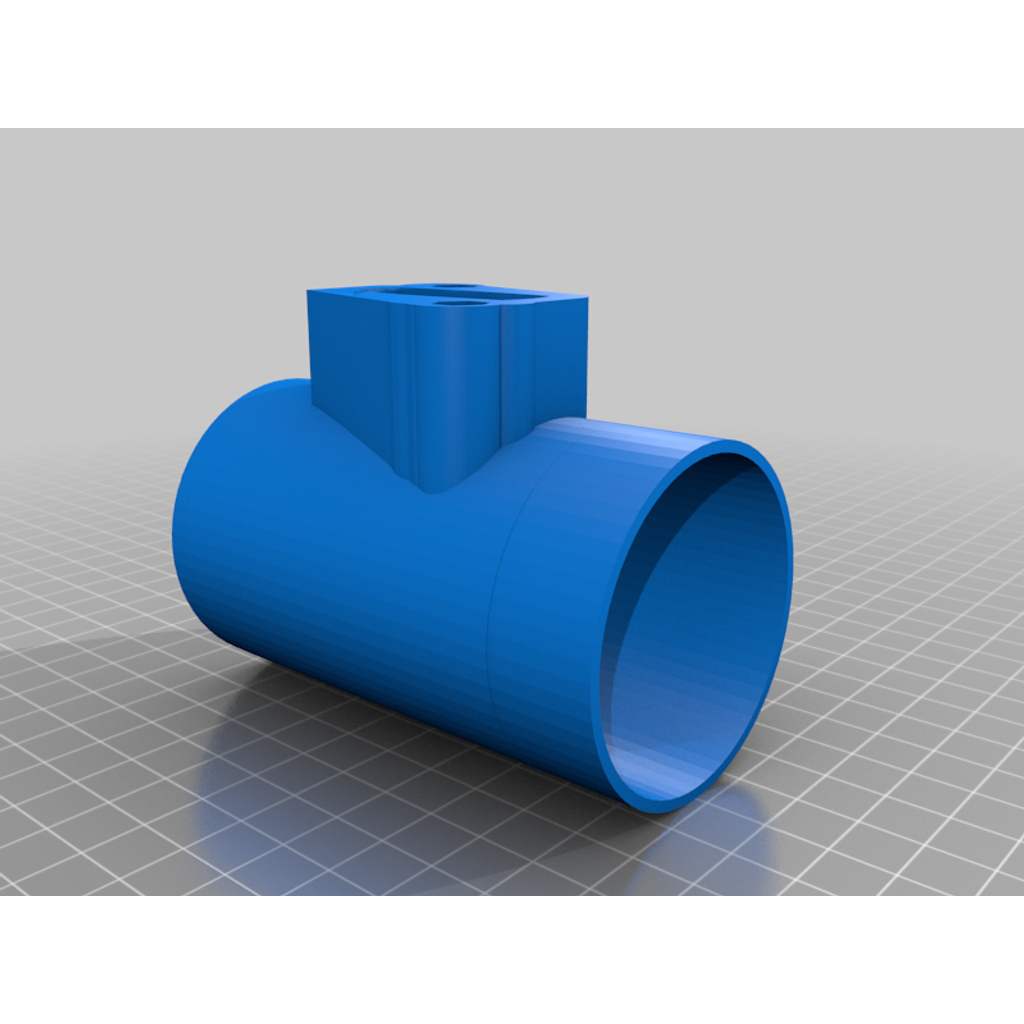

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Cold Air Intake MAF Sensor Mount
Cold Air Intake MAF Sensor Mount design listed for 2016–2022 Toyota Prius. Listed category: engine. Verify dimensions, fitment and material suitability before printing.
- Make
- Toyota
- Model
- Prius
- Year range
- 2016–2022
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
This listing is not offered for sale. Commercial permission or application suitability needs review.
Description
I recommend printing in ASA at the smallest layer height you are willing, with 100% infill. I'll be using carbon fiber ASA specifically with a 0.1 mm layer height
If you want to support me, please subscribe to me on YouTube and support me on Patreon
https://www.youtube.com/@gavinhogberg
https://www.patreon.com/gavinhogberg
Changes
___Mk10___
-Extended outlet side, Mk9 had an issue causing misfires
___Mk11___
-Changed bolting design. Nuts should now be held in on the top instead of the bottom, and should be held with epoxy such as high temp JB Weld. With the new design, the inside of the part is smoother for better airflow/volumetric efficiency, and there is no longer a risk of a nut coming loose and getting sucked into the engine
___Mk12___
I'm stupid and made the MAF sensor hole completely solid. It is fixed now
Source description, under the recorded CC-BY-SA-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
