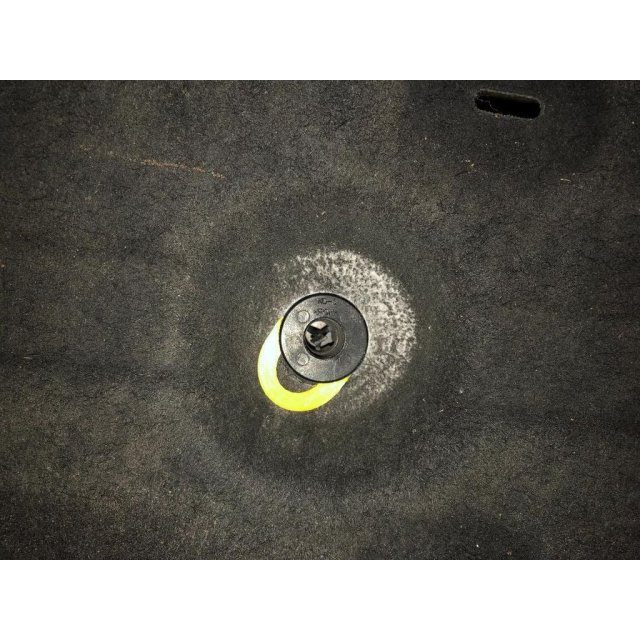

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
splash shield mounting clip
splash shield mounting clip design listed for 2017 Ford Edge. Listed category: exterior. Verify dimensions, fitment and material suitability before printing.
- Make
- Ford
- Model
- Edge
- Year range
- 2017
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
I just bought a 2017 Ford Edge and at 65MPH on a windy day I noticed a loud vibrating sound from the bottom of the car. There is a splash shield under the car that runs on both sides from front axle to back axle. When I would move that with my hand I noticed it sounded very loud and loose in the middle. (I tested a 2015 for this issue and it was tight) So I figured mine just had worn out mounting clips. I printed these clips to fill the gap between the Ford mounting clip and the shroud. I hope this helps and will report back the results if the sound goes away.
THE SOUND DID GO AWAY!
Source description, under the recorded CC-BY-SA-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
