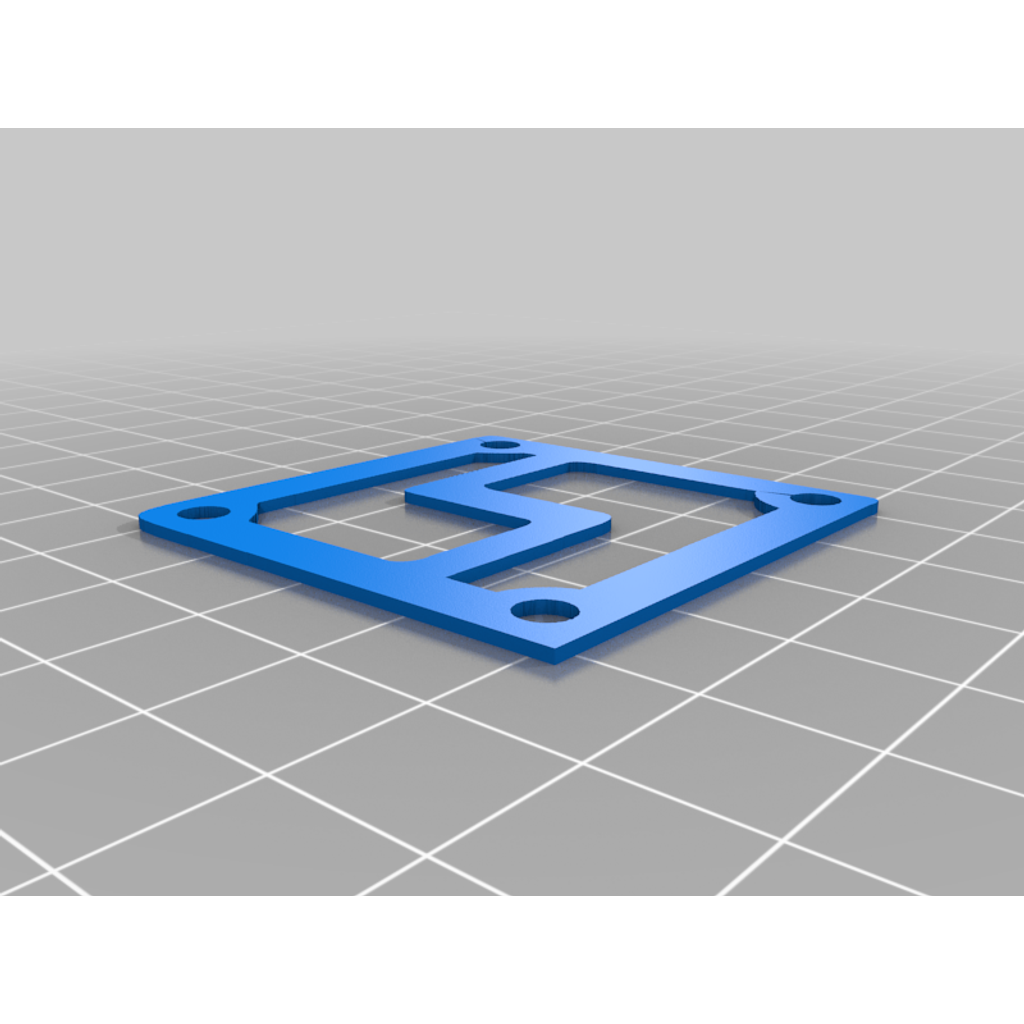

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
IAC throttle body gasket
IAC throttle body gasket design listed for 1997–2006 Jeep Wrangler. Listed category: engine. Verify dimensions, fitment and material suitability before printing.
- Make
- Jeep
- Model
- Wrangler
- Year range
- 1997–2006
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
This listing is not offered for sale. Commercial permission or application suitability needs review.
Description
I used TPU as it is flexible and supposedly resistant to gasoline. It will withstand engine temperatures unless in excess of 200℃. The dimensions are 43.56mm x 43.56 mm x 1.0mm. Although it looks symmetrical, the receiving edges are not but it will fit almost perfectly if you try the two different possibilities for best fit. I coated both sides with engine grease to ensure an airtight seal.
I printed very fine with no supports at 205℃/60℃. Even with the finest setting it took around just 30 minutes to print on an Anycubic Mega-S.
I'm making this available to others that might need it. Please attribute it to me if you plan on sharing it. I do *not* approve any sales from this gasket, so don't do it. My Jeep sure runs and idles nicely now.
Of course, using this is the sole responsibility of the user and I won't be responsible for any damage to yourself or your Jeep. If you have the slightest doubt, don't use it. Please use the normal safety procedures when working on any vehicle and, for that matter, using a 3D printer.
