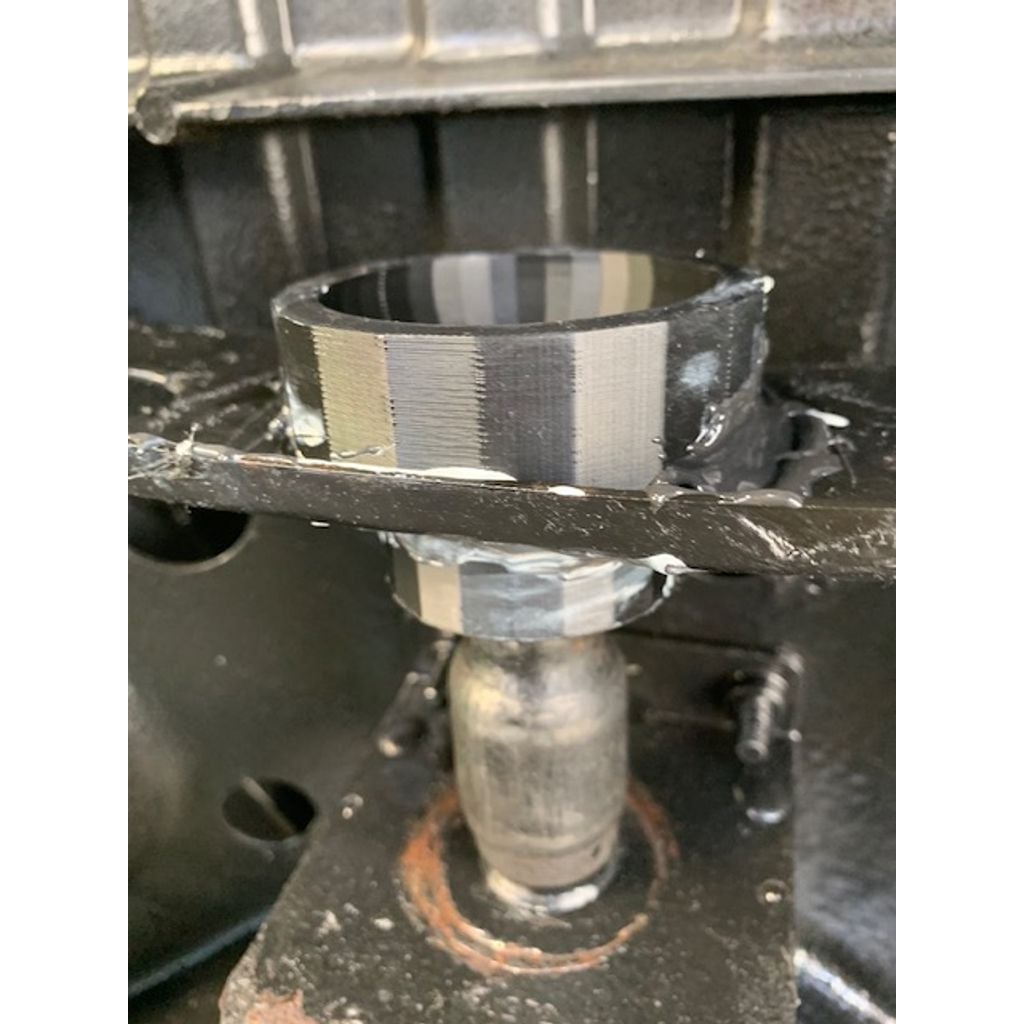

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
spare tire crank lock guide
spare tire crank lock guide design listed for 1995 Toyota Tacoma. Listed category: mounts-brackets. Verify dimensions, fitment and material suitability before printing.
- Make
- Toyota
- Model
- Tacoma
- Year range
- 1995
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
So I made this adapter to make it easier. It captures the drive head, locates it in the center of the opening and guides the crank tip in. Using the crank with the lock is easy peasy now, which is just what you need if you are stuck on the roadside fixing a flat.
Just print it and attach to the frame opening with some JB Weld... or just install a hose clamp on the back side.
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
