Side Mirror Tilt Pin
Side Mirror Tilt Pin design listed for 2008 Opel Corsa. Listed category: exterior. Verify dimensions, fitment and material suitability before printing.
- Make
- Opel
- Model
- Corsa
- Year range
- 2008
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description

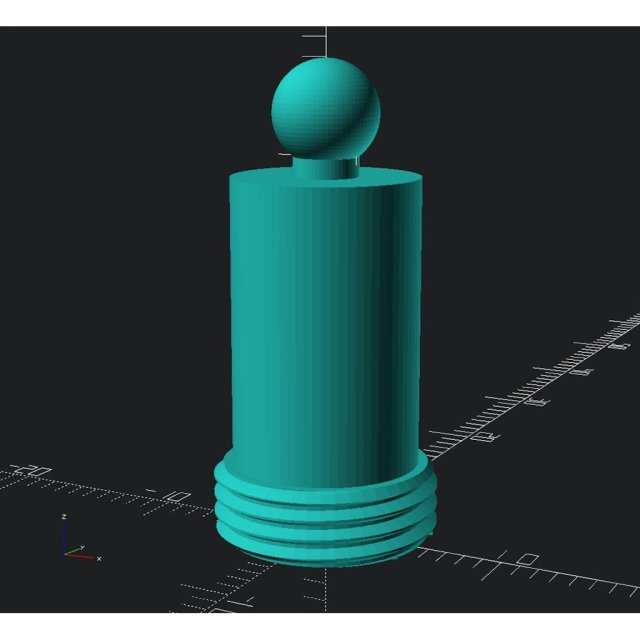

First i modeled exact original form of the tilt pin but threads were too thin and the whole pin too complex. When they were printed objects didn't last.
Simple cylindrical thread collar form is stronger and seems to work as expected in the mirror tilt mechanism.
SLA printing with hard resin might give the best results but i printed just with PLA and mirror seems to work fine.
This thing uses threads.scad -module from Dan Kirshner:
https://www.thingiverse.com/thing:1938150
https://dkprojects.net/openscad-threads/
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
