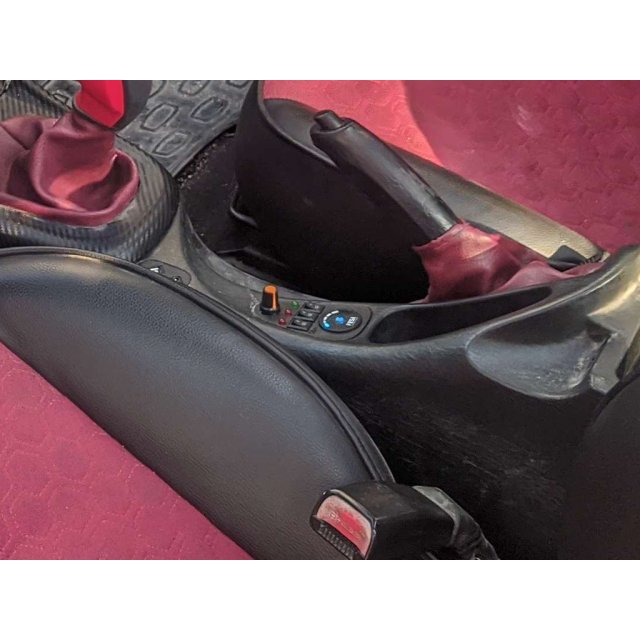

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Tray Console Floor to Multi-Function Panel
Tray Console Floor to Multi-Function Panel design listed for 1997 Hyundai Tiburon. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Hyundai
- Model
- Tiburon
- Year range
- 1997
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
This 3D model transforms the small tray section in your vehicle's center floor console into a fully functional control panel. It’s perfect for car modders, DIY electronics enthusiasts, or anyone running an LPG conversion, custom sound system, or auxiliary electrical setup.
🧩 Panel Includes:
✅ 3x Button holes – Fits toggle or push-buttons (recommended Ø 19mm)
✅ 3x LED holes – For indicator lights (fits standard 5mm LEDs)
✅ 1x LPG button slot – Circular slot for standard illuminated LPG switches (Ø 22mm)
✅ 1x Potentiometer hole – For analog controls such as volume (fits shafts ~7mm, outer ring ~16–20mm)
Source description, under the recorded CC-BY-SA-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $42.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $43.50 | General-purpose candidate; heat and creep need review. |
| ASA | $50.00 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $48.00 | Enclosed printing; review application and dimensions. |
| TPU | $60.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $60.00 | Moisture, tolerances and application require review. |
| PA-CF | $69.00 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
