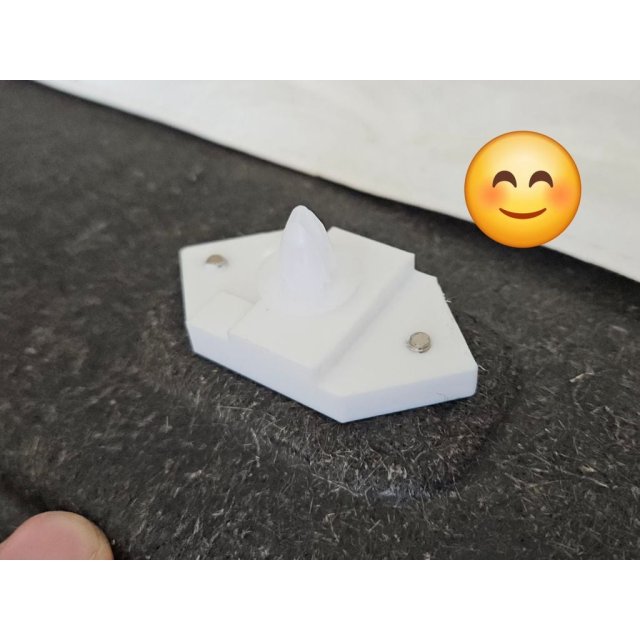

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Trunk Liner Retainer Bracket
Trunk Liner Retainer Bracket design listed for 2015 Hyundai Genesis. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Hyundai
- Model
- Genesis
- Year range
- 2015
- Submodel
- G80
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
There are two version: one for a 2.5mm gap in aftermarket clips, and one for a 1.5mm thick gap in OEM Hyundai clips (with a little "tail"). Note that the aftermarket clips don't work in the two openings closest to the back seat; they only stay clipped in the three or four openings closer to the trunk opening.
Print with high infill and a heat-resistant plastic (like ABS). To install these, I recommend drilling out the original rivets and using computer fan screws to retain the new bracket. Of course, you can edit the FCStd file in FreeCAD to fit different clips or accept different screws/rivets. I have provided STEP CAD files for printing because modern slicers support them, and they directly reproduce curved surfaces unlike 3MF or STL.
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $17.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $18.00 | General-purpose candidate; heat and creep need review. |
| ASA | $18.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $18.50 | Enclosed printing; review application and dimensions. |
| TPU | $20.00 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $20.00 | Moisture, tolerances and application require review. |
| PA-CF | $21.00 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
