Design by Metaldrgn · Original design · CC-BY-4.0 · Source details. Indexed via 3DCarParts. Source text and images remain credited to their creators; no modified design files supplied.

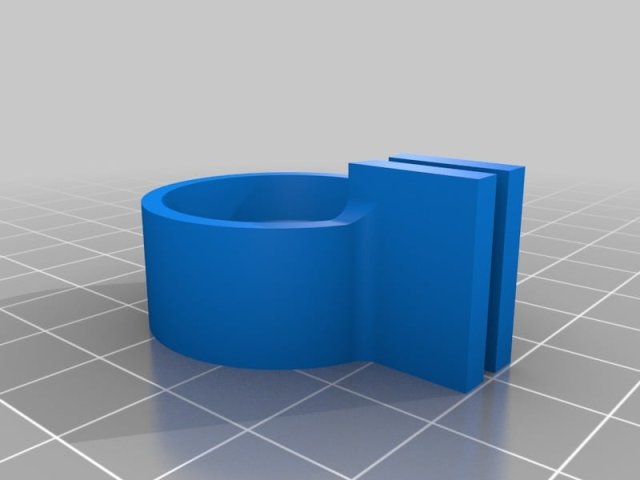

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Spark Plug Boot Removal Tool
Spark Plug Boot Removal Tool design listed for 2001 Chevrolet Yukon XL. Listed category: specialty-tools. Verify dimensions, fitment and material suitability before printing.
- Make
- Chevrolet
- Model
- Yukon XL
- Year range
- 2001
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
Instructions: Once printed out, slide the open end over the plug wire and expand it enough to slip over the heat shield until the lip settles into the groove. Then take a pair of pliers (I found needle nose vice grips work well for constant pressure so they don't slide off) and something to pry/leverage the boot off.
I plan to make a video of this sometime. I sold my Yukon so I don't have a demo vehicle :(. I plan to get another later on though. I will also be adding this to my Shapeways so anyone without a printer can still get one. https://www.shapeways.com/product/WED3B5S4N/gm-chevy-spark-plug-boot-removal-tool
Source description, under the recorded CC-BY-4.0 license.
Print instructions
Brand: Solidoodle
Printer: Solidoodle 3
Rafts: No Supports: No
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $17.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $18.00 | General-purpose candidate; heat and creep need review. |
| ASA | $18.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $18.50 | Enclosed printing; review application and dimensions. |
| TPU | $20.00 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $20.00 | Moisture, tolerances and application require review. |
| PA-CF | $21.00 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
